Renogy Rover 30A MPPT Solar Charge Controller with LCD Display - 12V/24V Battery Regulator for RV, Marine, Off-Grid Solar Power Systems

Previous page Next page 1 Installation 2 BMS 3 Design 4 Safety 5 Heat Dissipation Previous page Next page 1 Protections 2 With Renogy One 3 Long-Lasting 4 Programming Specifications Nominal System Voltage 12/24V (Auto-Detect for Non-Lithium types) Rated Charge Current 30A Max. PV Input Voltage 100 VDC Max. PV Input Power 12V/400W, 24V/800W Power Consumption ＜100mA/12V; ＜58mA/24V Max Battery Voltage 32V Grounding Common Negative Communication RS485 Modbus (BT-2) Operating Temperature -35°C to 45°C; -31°F to 113°F Storage Temperature -35°C to 75°C; -31°F to 167°F Humidity ≤ 90%, No Condensation Enclosure Rating IP32 Electrical Protection Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries BT-2 Communication Range ≤82ft (25m) Dimensions 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in Weight 4.4 lbs / 2.0 kg Comparison Table Rover 30A MPPT Add to Cart Renogy Bluetooth Module 2 Add to Cart Rover 40A MPPT Add to Cart REGO 60A MPPT Add to Cart Customer Reviews 4.6 out of 5 stars 611 3.8 out of 5 stars 19 4.3 out of 5 stars 287 — Price $159.99$159.99 $39.99$39.99 $169.99$169.99 $374.99$374.99 Rated Battery Input Voltage 12VDC / 24 VDC (Auto) - 12VDC / 24 VDC (Auto) 12VDC Maximum Solar Input Power 400 W (12V);800W (24V) - 520 W (12V);1040W (24V) 800W (12V Battery) Maximum Solar Input Voltage 100VDC - 100VDC 100VDC Dimensions 9.38 x 6.78 x 3.05 inch - 9.38 x 6.78 x 3.05 inch 9.43 x 7.36 x 4.28 inch Weight 4.4 lbs/ 2.0kg 0.13kg 4.4 lbs/ 2.0kg 4.7 lbs/ 2.7kg

【Remote Monitoring】RS485 port allows the Rover to communicate with the bt-2 Bluetooth module, which can pair with the Renogy DC Home APP.

Compatible with 12V and 24V systems. Compatible with various deep cycle battery options sealed, gel, flooded, and lithium.

The Rover is a negative ground controller, which ensures compatibility with any negative ground System.

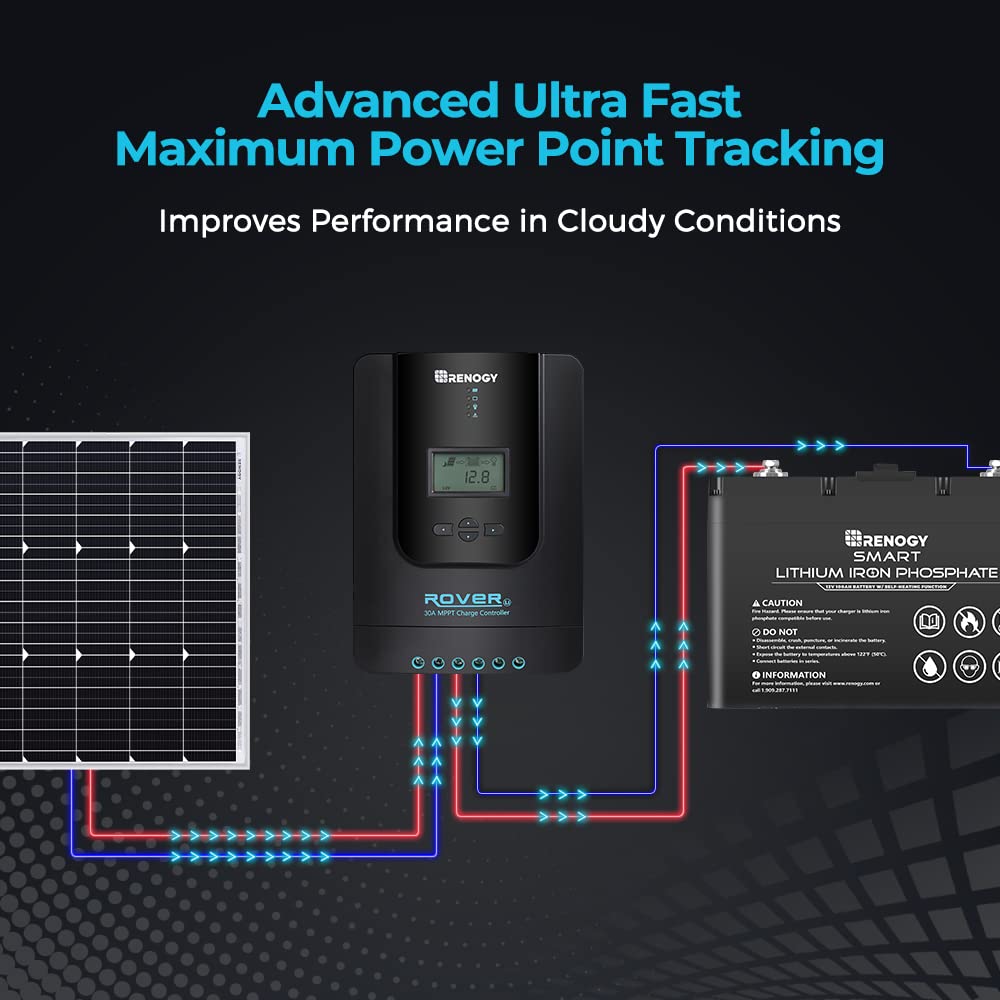

Featuring innovative mppt (maximum power Point tracking) technology with High tracking efficiency up to 99%, maximizing the energy from Solar panels to charge your system.

4-Stage charging (bulk, boost, Float, and equalization) and temperature compensation increase your battery life and improve your system's performance.
