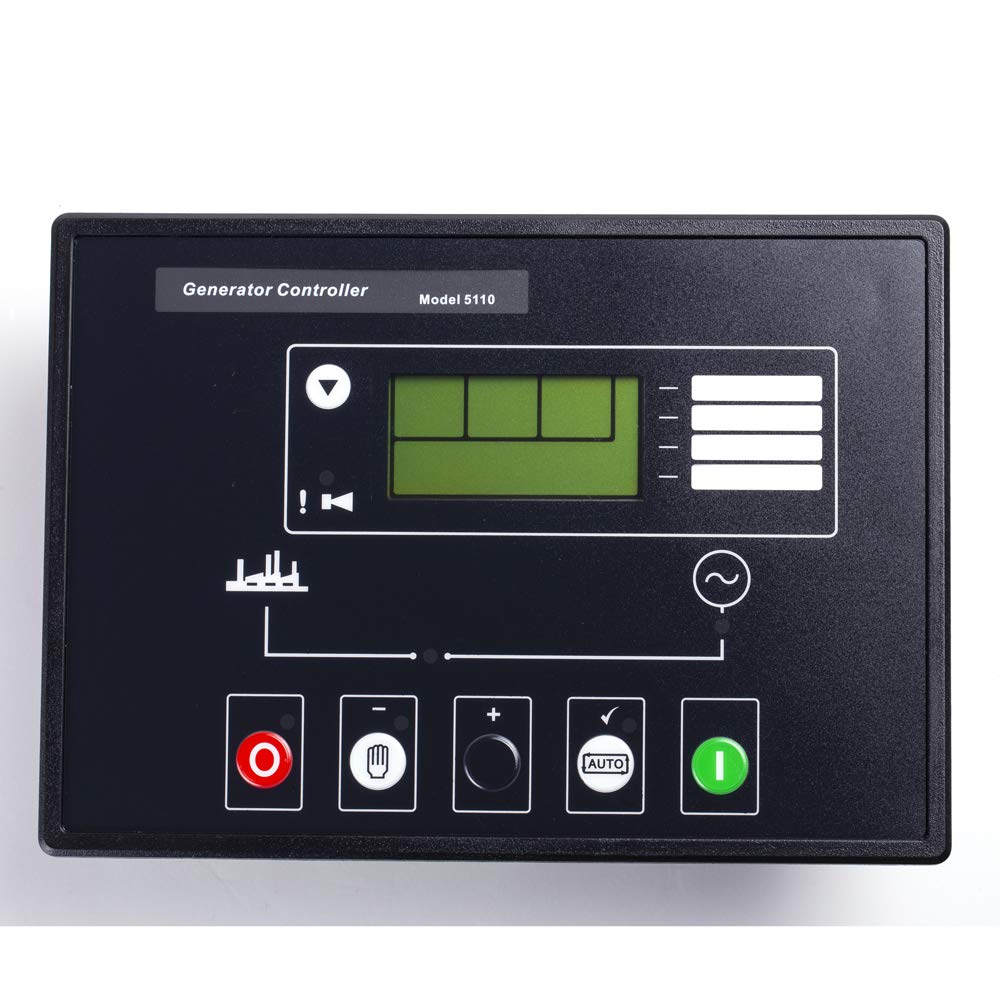

FEATURES of DSE 5110 Automatic Generator Controller • Automatic start • Automatic load transfer • Configurable inputs • Configurable outputs • Configurable alarms & timers • Digital inputs • Analogue inputs • Back-lit character LCD display • Engine protection • Front panel mounting • Icon based fault diagnostics • PC configurable • Front panel programming • Remote monitoring • LCD alarm indication • LED alarm indication INPUTS & OUTPUTS of DSE5110 Generator Automatic Controller Analogue inputs are provided for oil pressure and engine temperature. These connect to conventional engine mounted resistive sender units to provide accurate monitoring and protection facilities. The modules can also be configured to interface with digital switch type inputs for low oil pressure and high engine temperature shutdowns. Relay outputs are provided for fuel solenoid output, start output and three additional configurable outputs. A range of different functions, conditions or alarms can be selected for the three configurable relay outputs. These outputs are fed from the permanent plant provide. The DSE 7320 Generator ATS Controller will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated terminals for system expansion. Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements. OPERATION for 5110 DSE Controller The DSE5110 is operated using the front STOP, AUTO and MANUAL push buttons. An additional push button on both modules allows the user to scroll through the LCD instrumentation display. CONFIGURATION of DSE 5110 Generator Controller The module DSE5110 can be configured using the front panel buttons or the DSE810/P810 interface and PC software. BENEFITS 5110 DSE Generator Controller • In-built engine diagnostics removes the requirement for service equipment • License free PC software • Modules help to improve the life cycle of engine starter motors • On-site module configuration • User-friendly set-up and button Layout
