24V 500W Brushed Speed Motor & Controller Kit - High Performance for Electric Scooters, Go Karts, Bicycles, E-Bikes, Tricycles & Mopeds - Perfect for Commuting, Off-Road Adventures & DIY Projects

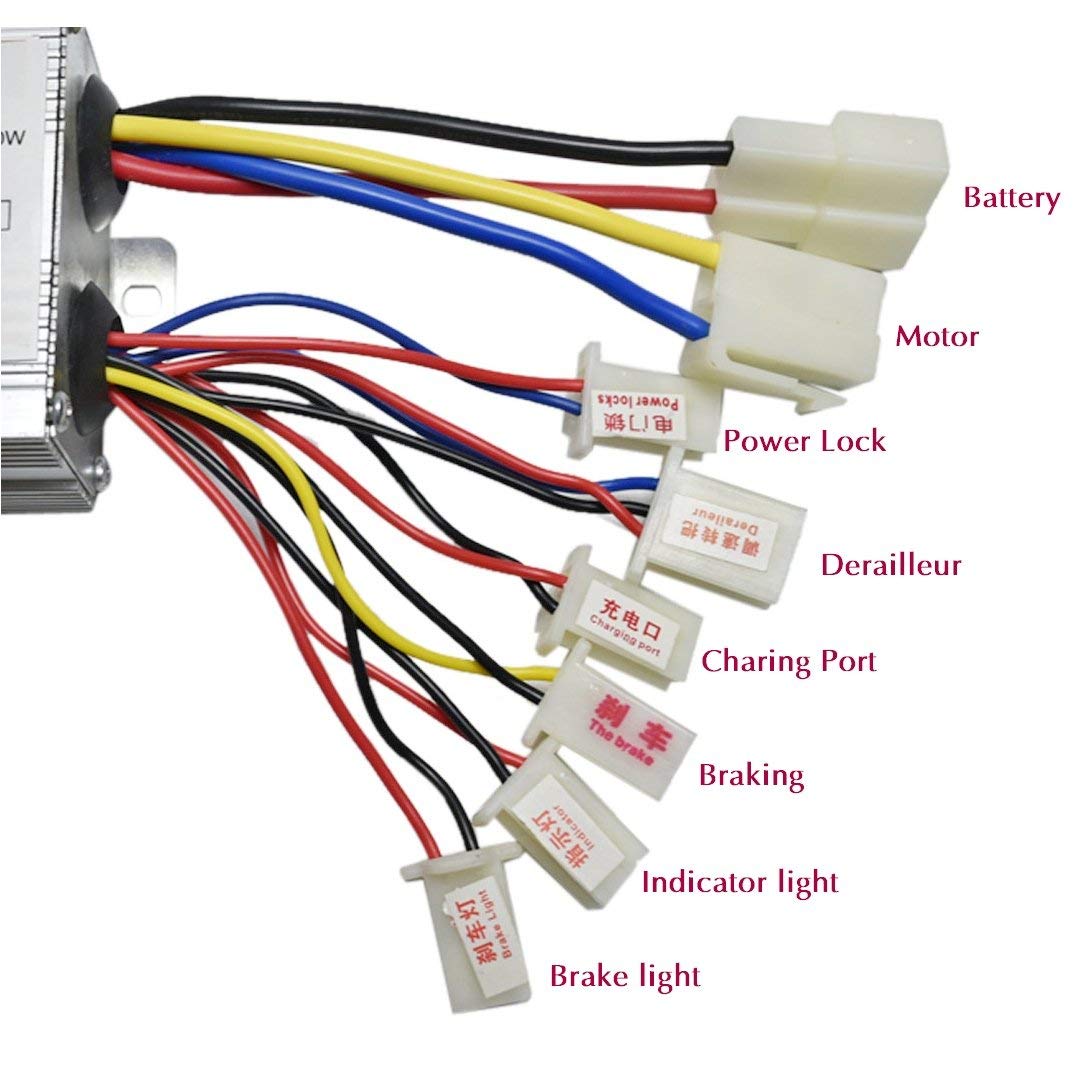

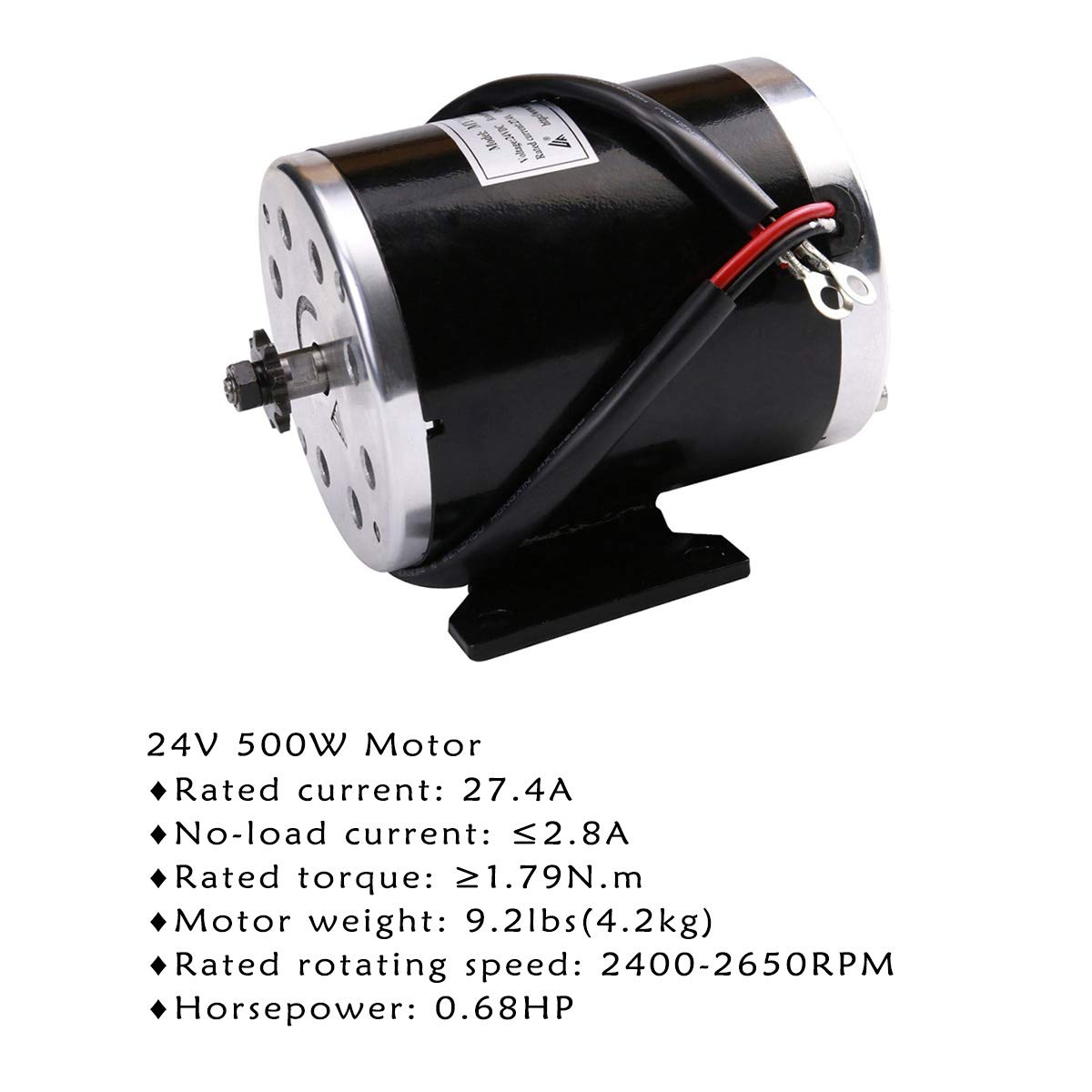

Motor:Output: 500WRated speed: 2400-2600 RPMRated voltage: 24V DCRated current: 27.41ANo-load current: ≤2.8APeak efficiency at 24V: 80 percentReversible: (w/ polarity swap)Sprocket：11 tooth sprocket for #25H chainController:Rated voltage: 24V DCConversion efficency: 95% Under Voltage Protection: 20±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 8 connectors, compatible with many 24V bikes with up to 500W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

This is a set of reliable universal 24V DC 500W brushed electric motor & controller

Rated speed 2500 RPM, Sprocket：11 tooth sprocket for #25H chain, Horsepower 0.68HP

Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes

Refer to picture and below "Product Description" for wiring instruction and specifications

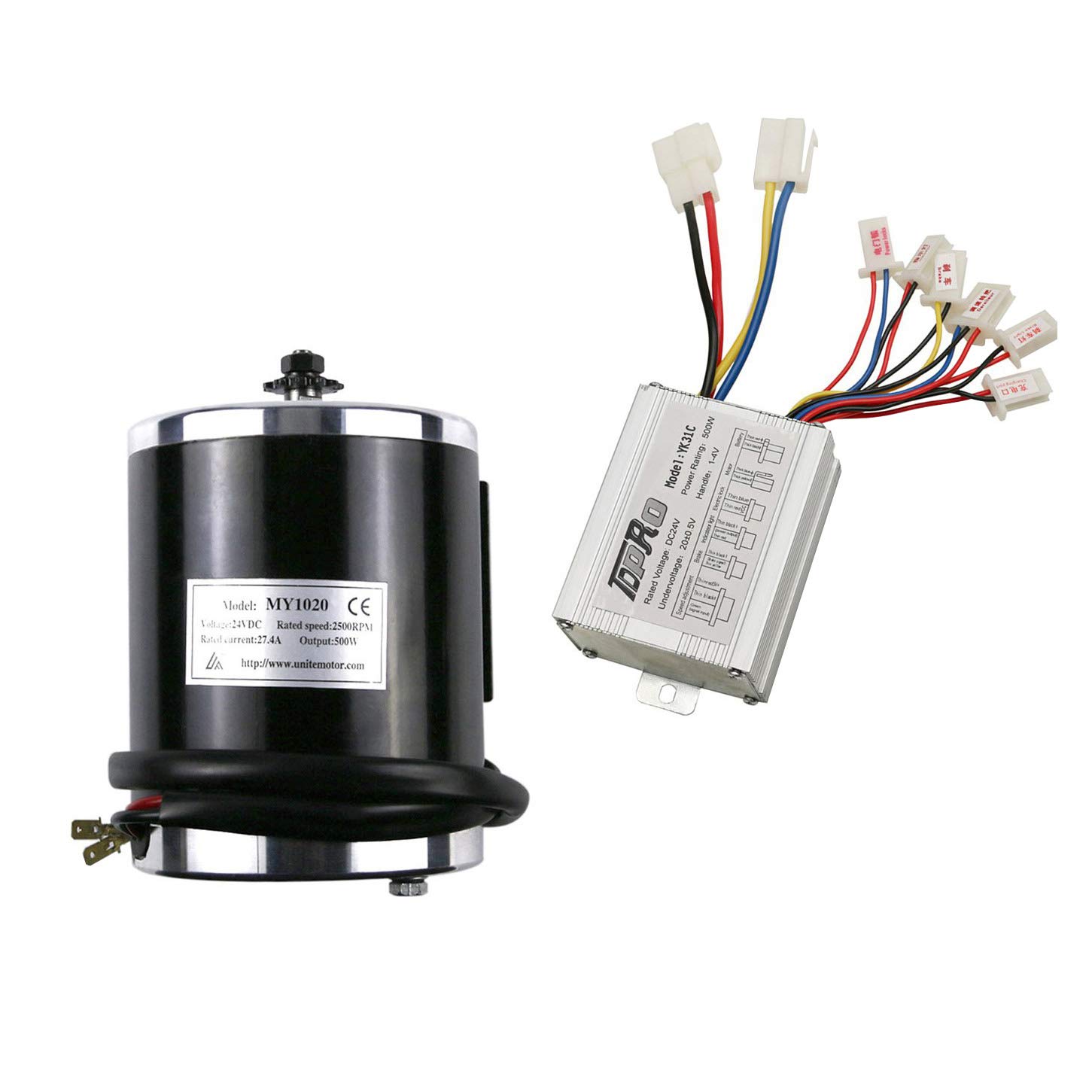

Package includes 1x Motor + 1x Controller
