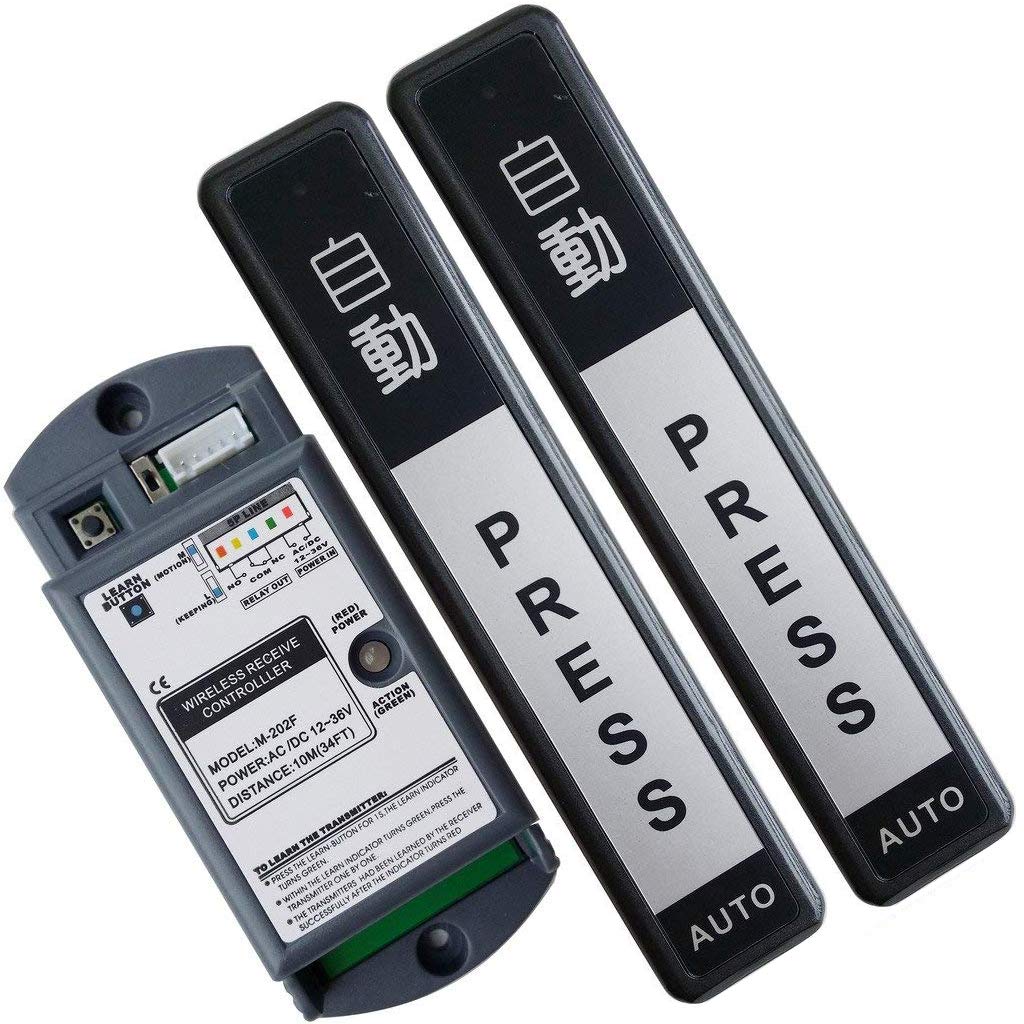

UHPPOTE Wireless Auto-Door Control System with Hand Pressure Switch & Receiver - Perfect for Commercial Buildings, Warehouses, and Automatic Doors

Specifications: Power: AC/DC12-36V (Wireless receiver controller) Current: 15mA(Standby); 80mA(Working) Main contact capacity: 20A 14VDC (Wireless receiver controller) Secondary contact capacity: 1A 24VDC (Wireless receiver controller) Contact pull hold time: 2S (Wireless receiver controller) Battery: 6V (Wireless hand pressure switch) Emission current: 3.9mA (Wireless hand pressure switch) Battery life: approx. 300 days if press 500 times everday (Wireless hand pressure switch) Distance: 10m / 34ft Working temperature: -42℃~45℃ / -43.6℉~113℉ Working humidity: 10~90%RH Hand pressure switch size: 203x40x13mm / 7.99x1.57x0.51in (LxWxH) Receiver controller size: 123x50x32mm / 4.84x1.97x1.26in (LxWxH)To learn the transmitter: Press the LEARN-BUTTON for 1S, the leare indicator turns green Within the learn indicator turns green, press the transmitter one by one The transmitters had been learned by the receiver successful after the indicator turns redPackage include: 2 x Wireless hand pressure switch 1 x Wireless receive controller

ADOPT uniformity ferquency, high stability of wireless signal receiving and sending

Siludification of PU varnished shell, dapper apperence with anti-off screw

Panel pushing with low-power consumption, long service life battery

With lagre capacity output, available to be used with autodoor, electric lock and access controller

Function switch with voice indicatior, power indicatior turns green to confirm the validity of operation.
