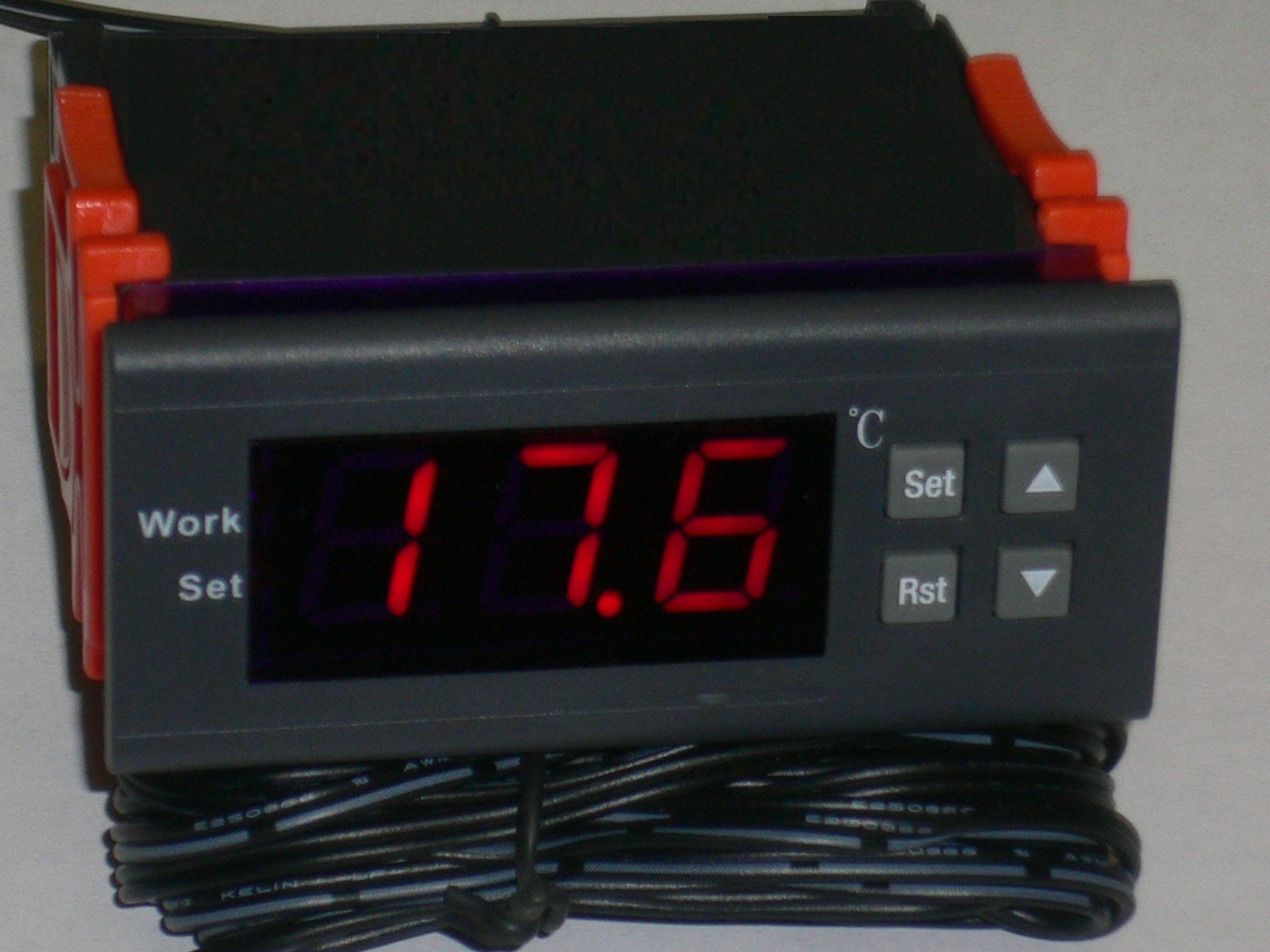

Digital Temperature & Time Controller for Wood Stove Pipe Flue - Boiler Water Monitoring Thermometer with Alarm - Perfect for Fireplace, Chimney & Heating Systems

Dual Mini Temperature Controller Thermostat for Controlling temperature on Wood Stove, Chimney Pipe, Boiler water,..... in the temp range -22 to 480 F (0-250 C) The controller has a set point and also alarm set point from -22 to 572 F (0 to 300 degrees C).You can set a timer Value too. The sensor detects changes so quickly, you can see the temperature rise and fall degree by degree (with 0.1 degree resolution). Features Mini and light design Large and clear LCD display Temperature Range-22 to 480 F (0-250 C) Control temperature by setting the temperature set value and the different value Temperature Calibration Wiring diagram for installation included Temperature Controller Specifications Temperature Measuring Range: -22 to 480 F (0-250 C) Control temperature range: -30 ~ 300 degree (adjustable) Control temperature difference: 0.1 - 25 degree (adjustable) controlling Resolution: 0.1 degree Timer : 0-999 minute Sensor error delay: 1 minute Relay contact capacity (Heating or cooling): 10 Amp for 110V Compressor delay protection time: 0 ~ 10 minutes (adjustable) Storage Temperature: -30 ~ 75 °C Operating Relative Humidity: 20 ~ 85 % (No condensation) Power Supply: 100-120 V AC/DC (depends on your country) Power consumption: <2 W Cable length: 3 m (near to 10 feet) Equipped with AH or AL buzzer alarm (Higher or Lower temperature alarm setting) Item dimensions: approx. 75 (W) x 86 (H) x 35 (D) mm (2.95’ x 3.39’ x 1.38’ inch) Item weight: 180 g Temperature Sensor Specification Measurement range: -22 to 480 F (0-250 C) Cable length (L): 10 ft (3m) Sensor type: NTC sensor (100K) Wiring work The unit is of a panel mount design . This unit is supplied with wiring diagram of how to fix the main unit to your application systems. One Set Included 1 x Mini-Temperature Controller 1 x Temperature sensor probe with 3m cable 1 x Instruction Manual

it is accurate controller with 0.1 C or 0.1 F resolution controlling and Selection between Celsius and Fahrenheit

Included Temperature and timer controller, sensor, manual and Wiring diagram for installation

Equipped with buzzer alarm for high or low temperature alarm setting and Temperature Calibration

Temperature Range -22 to 480 F (0-250 C) and timer range 0-999 minute (with 2 type timer action) and It has a 10 Amp output relay for controlling any electric air valve (or other device).
