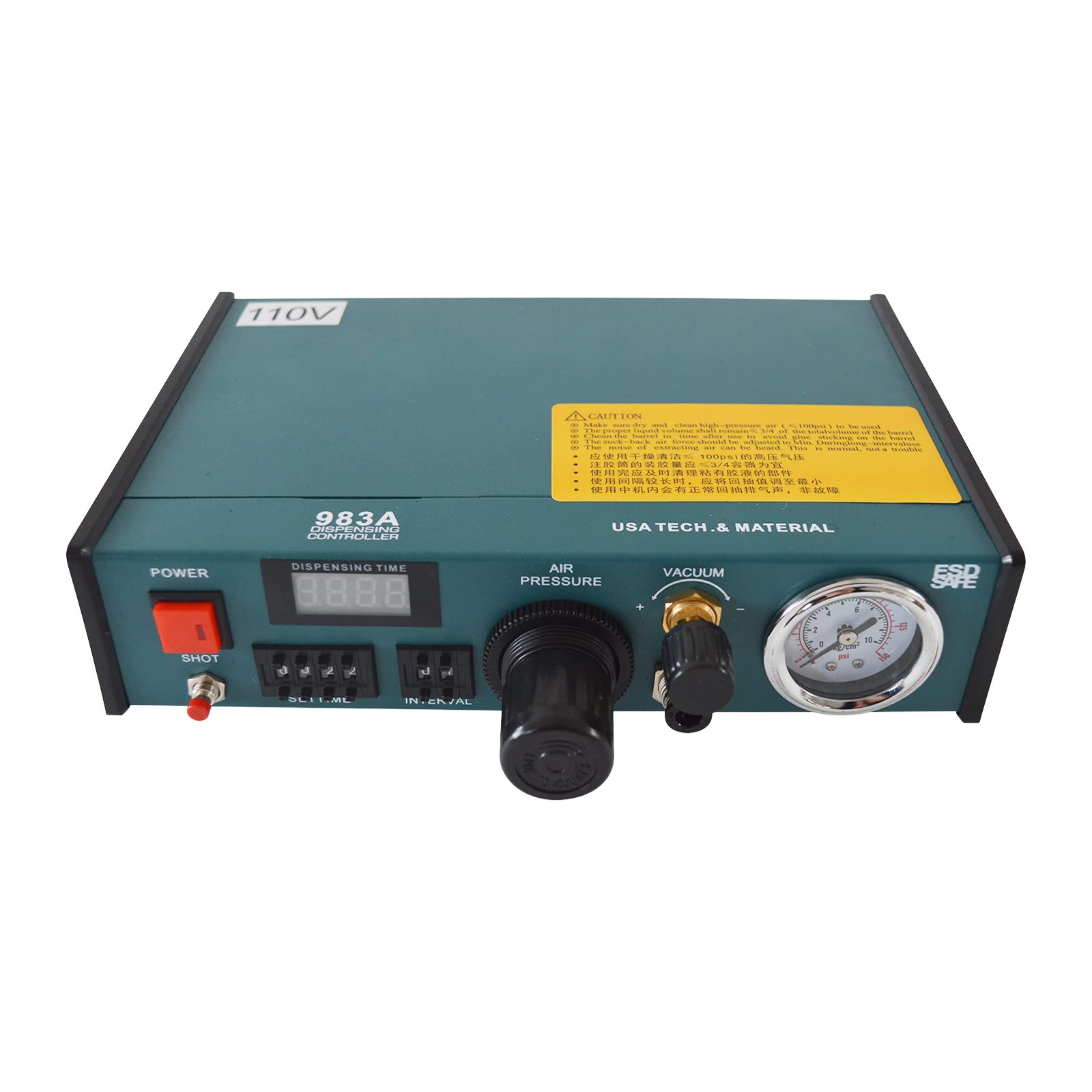

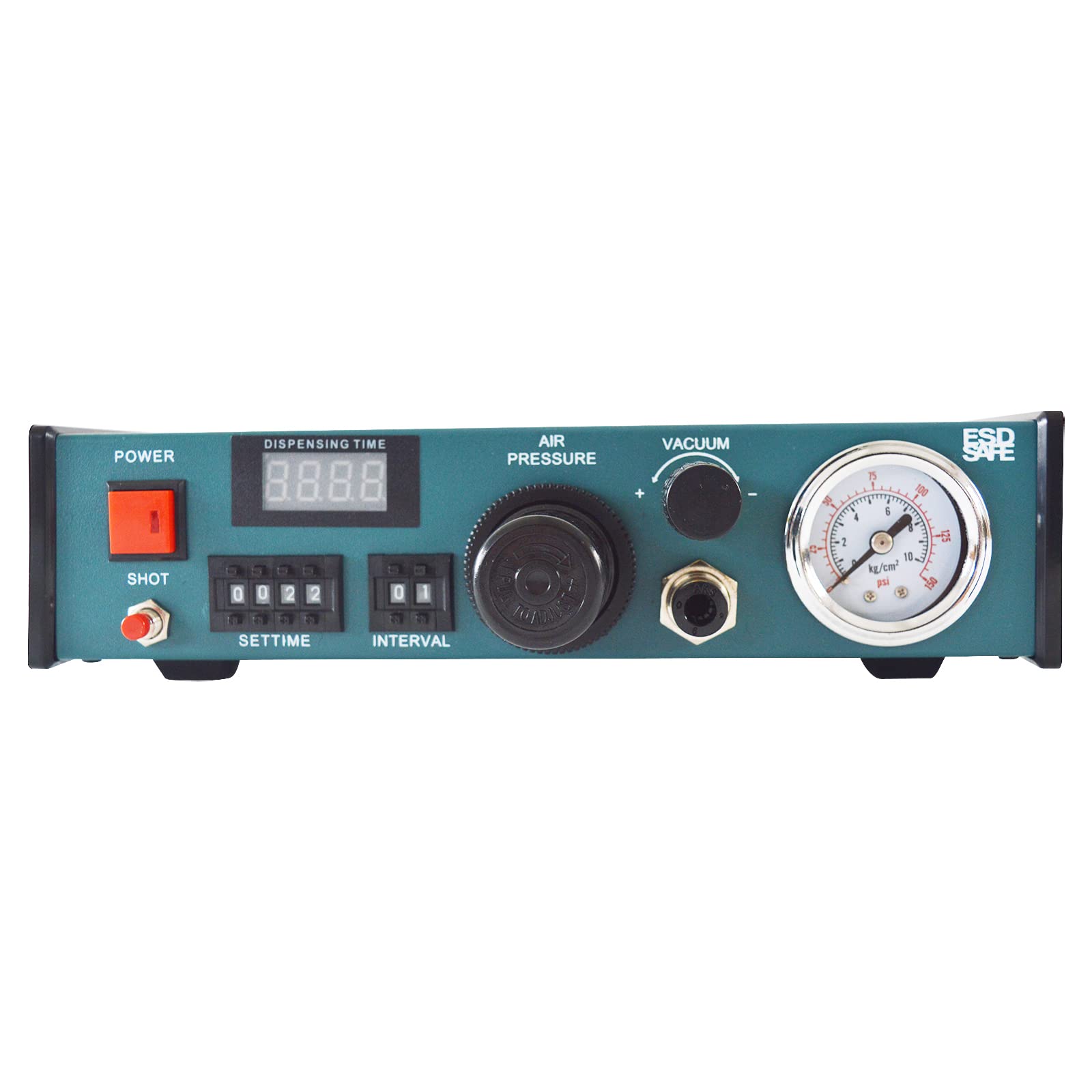

INTBUYING 983A Precision Paste Glue Dropper - Automatic Liquid Dispenser Controller for Crafts, Jewelry Making & DIY Projects

Model: 983A Voltage: AC110V±10% 60Hz Internal voltage: DC12V Power: 10W Length of air source connecting pipe: 5.54ft(169cm) The length of the connecting tube of the syringe: 2.75ft(84cm) Syringe capacity: 30ml Stents height: 7.68"(19.5cm) Input air pressure: 0.07Mpa-0.69Mpa Output air pressure: 0.007Mpa-0.55Mpa Function mode: Manual mode and 16 free setting modes Dispensing time adjustment range: 0.01S-99.99S Dispensing interval adjustment range: 0.1S-9.9S Repetition accuracy: ±0.3% Dispensing frequency: More than 1000 times/min Minimum dispensing amount: 0.0001ml Suitable liquid material: Follower, Damping oil ,Add epoxy glue, Anaerobic adhesive ,Chemical reagent,Flux,Copper flux,Organic silicone,Oil grease,Oil ink,paint Package Size: 10.2"*8.7"*5.9"(26cm*22cm*15cm) Net weight: 4.4lb(2kg)

the dispenser has one manual mode and 16 free setting modes,Dispensing frequency more than 1000 times / min

High-precision digital intelligent controller, precise control of each dispensing time

Can improve production efficiency, improve product quality, and realize the process that manual dispensing can not be completed

Precise control of dispensing drops and dispensing cycle

Suck-back function ensures no leakage drops,This unit need to be connected to air compressor.
