HAT530N Automatic Transfer Switch (ATS) Controller for Generator - Reliable Power Backup Solution for Home & Commercial Use

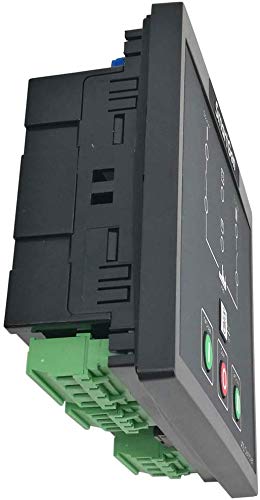

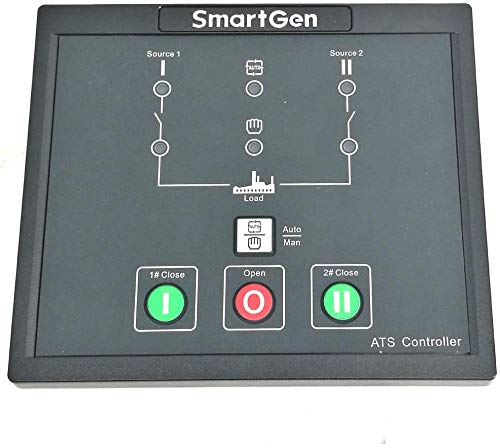

Performance and characteristics:Measure and display 2-way 3 phase Voltage and FrequencyOver/under voltage, loss of phase, phase sequence wrong, over/under frequency protection function. As default, phase reverse sequence protection and over/under frequency protection are disable; however, users can set the protection function as need.Parameters can be set via PC software using SG72 module (USB to LINK) or other converse module.The voltage normal delay of 1# or 2# can be set in (0~60) seconds and the Genset start delay can be set in (0~3600) seconds.The voltage abnormal delay of 1# or 2# can be set in (0~60) seconds and the Genset stop delay can be set in (0~3600) seconds.“1# power priority”, “Auto/Manual”, “No priority” and “2# power priority” can be set via controller front panel.Closing output signal can be set as on intervals or as continuous output.Applicable for 2 isolated neutral line.Auto/Manual mode. In manual mode, ATS transfer can be implemented via panel pushbutton.LEDs mounted on front panel can clearly show ATS running status.Forced Open input port been designed; When the input port is active, the switch will be Breaking position forcedly (woks for the ATS with Breaking Position).AUX.OUTPUT 1 and AUX.OUTPUT 2 can be configured to make it easy to transfer power supply.The output contact capacity of 1# and 2# power supply transfer relay (1#CLOSE, 2#CLOSE) is 5A AC250V, passive contact, can be directly used in driving switch to transfer.The output contact capacity of Genset start relay (GENS START) is 7A AC250V/7A DC28V, passive N/C contact.Suitable for various AC systems (3 phase 4-wires, 2-phase 3-wires and single-phase 2-wire).Modular design, retardant ABS plastic shell, pluggable terminal, built-in mounting，compact structure with easy installation.

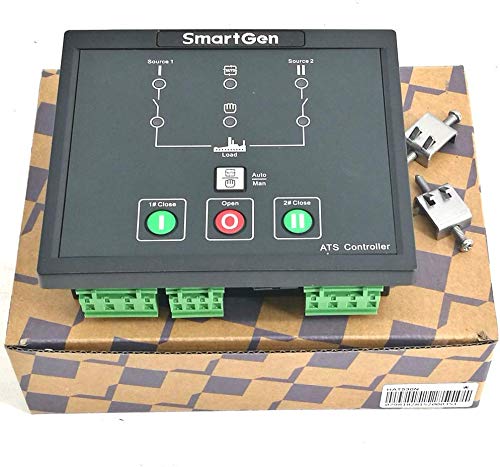

HAT530N controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the “#1 abnormal delay” has expired.

The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired.

Over/under voltage, loss of phase, phase sequence wrong, over/under frequency protection function. As default, phase reverse sequence protection and over/under frequency protection are disable; however, users can set the protection function as need.

Three remote” (remote control, remote measurement and remote communication).

Measure and display 2-way 3 phase Voltage and Frequency.
